ST-14BS Pharmaceutical excipient nitrogen analyzer (4-hole)

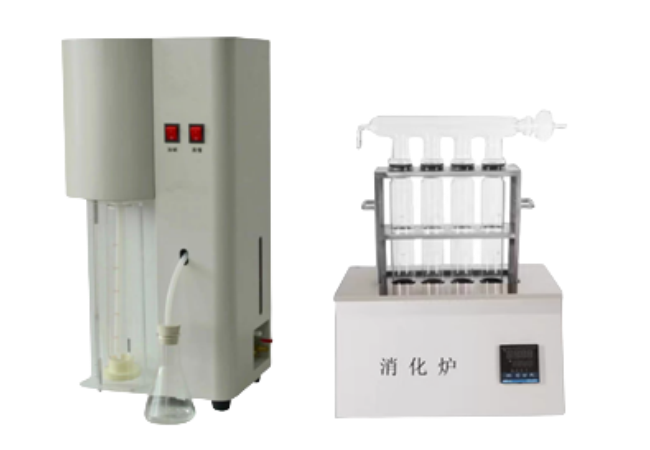

The ST-14BS=ST-14B+ST-04C pharmaceutical excipient nitrogen analyzer mainly consists of two parts: an electric heating digestion furnace and a distiller.
ST-14BS pharmaceutical excipient nitrogen analyzer (also known as pharmaceutical excipient protein analyzer) is a series of products designed by our company based on the principle of Kjeldahl nitrogen analyzer, which complies with the 2020 Chinese Pharmacopoeia 0704 nitrogen analyzer method and 0731 protein content analyzer method. Mainly used to detect the protein content in test samples that do not contain inorganic nitrogen-containing substances or organic non protein nitrogen-containing substances.
Standard: ChP 0704 ChP 0731
Technical Specifications:
| Tested varieties | grain, food, dairy products, beverages, feed, soil, water, medicinal excipients, sediment, and chemicals, etc |
| Measurement range | Nitrogen content 0.05-90% (0.1-200mg nitrogen) |
| Working voltage | AC220V 50HZ |
| Sample size | Solid 0.20-2.00g Semi solid 2.00-5.00g Liquid 10.00-25.00ml |
| Distillation speed | 5-15min per sample (depending on the sample size) |
| Repetition rate | ≥ 99% (relative error, including digestion process) |
| Repetition rate | Relative standard deviation ≤± 0.5% |
| Accuracy | Relative difference of 1% |
| Power | 4-hole digital digestive furnace 1200W |
| Distiller | 800W |
| Weight | 25kg |
| Volume | 380 * 330 * 820mm |
| Distiller | Distilled water enters the distiller |
● Tested varieties: grain, food, dairy products, beverages, feed, soil, water, medicinal excipients, sediment, and chemicals, etc
● Measurement range: Nitrogen content 0.05-90% (0.1-200mg nitrogen)
● Working voltage: AC220V 50HZ
● Sample size: Solid 0.20-2.00g; Semi solid 2.00-5.00g; Liquid 10.00-25.00ml
● Distillation speed: 5-15 minutes per sample (depending on the sample size)
● Recovery rate: ≥ 99% (relative error, including digestion process)
● Repetition rate: Relative standard deviation ≤± 0.5%
● Accuracy: Relative difference of 1%
● Power: 4-hole digital digestive furnace 1200W
● Distiller: 800W
● Weight: 25kg
● Volume: 380 * 330 * 820mm
● Distiller: Distilled water enters the distiller
ST-04C digestion furnace
Product Features:
● Quartz infrared heating tube; Fast heating time and high efficiency
● The furnace hole temperature is continuously adjustable, with a fast heating speed and a wide range of applications
● The temperature difference between the holes is small, the sample digestion consistency is good, the thermal efficiency is high, and it is conducive to the digestion of the sample
● The instrument table and test tube rack are made of welded brushed stainless steel plates, which have a certain anti-corrosion ability
Parameter indicators:
| Number of heating holes | 4 |
| Digestive tract length | 300mm |
| Design temperature | RT ～ 500 ℃ |
| Temperature control method | intelligent PID control |
| Temperature control accuracy | ± 1 ℃ |
| Heating rate | ≈ 30 ℃/min |
| Voltage | AC220V |
| Power | 2Kw |
| Current | 9A |
| Sealing material | polytetrafluoroethylene |
● Number of heating holes: 4
● Digestive tract length: 300mm
● Design temperature: RT ～ 500 ℃
● Temperature control method: intelligent PID control
● Temperature control accuracy: ± 1 ℃
● Heating rate: ≈ 30 ℃/min
● Voltage: AC220V Power 2Kw
● Current: 9A
● Sealing material: polytetrafluoroethylene
Packing List
| Number | Name | Quantity | Specifications | Note |
| 1 | Fixed nitrogen distiller | 1 | Host | |
| 2 | Digestion furnace | 1 | Host | |
| 3 | Test tube rack | 1 | 4 holes | |
| 4 | Exhaust collection pipe | 1 | Glass | |
| 5 | Digestive tract | 4 | Glass | |
| 6 | Exhaust three-way valve | 1 | Tetrafluoroethylene | |
| 7 | Power cord | 2 | 10A | |
| 8 | Fuse tube | 1 | 5A | |
| 9 | Sealing ring | 4 | Rubber | |
| 10 | 6 * 11 rubber tube | 1 | Metre | |
| 11 | Instruction Manual | 1 | Copy | |
| 12 | Certificate of Conformity Warranty Card | 1 | Copy | |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
